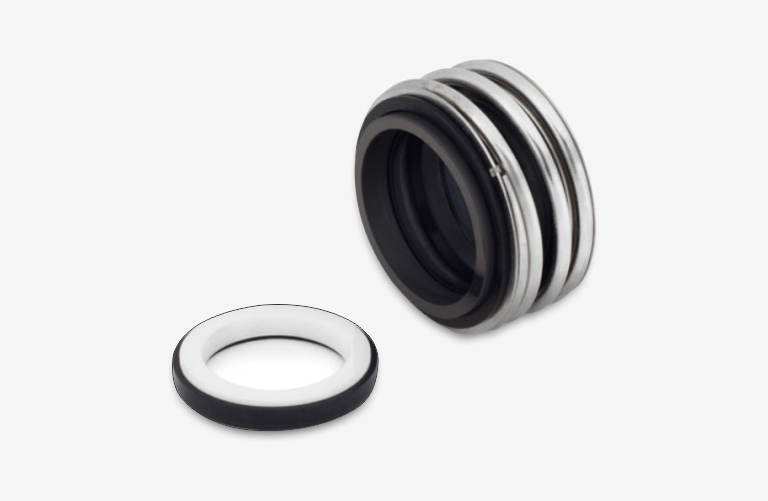

Rubber bellow seal designed for general sealing purpose including easy installation of the seal. This seal is specifically developed for the water and waste water treatment plants. These seals have a unique rubber bellow secondary seal with self-aligning features which compensates abnormal shaft end play and run-out to provide service life. Rubber bellows protect shaft and sleeve from fretting.
• Single seal
• Inside mounted
• Unbalanced
• Elastomer Bellow seal
• Independent of direction of rotation
• Shaft Dia : 12mm to 100mm
• Pressure : Up to 8 bar
• Temp : -20℃ to 160℃
• Speed : Up to 20m/s
• Seal Faces – Carbon, Silicon , TC, Ceramic
• Secondary Seal - Viton, Neoprene, EPDM, NBR
• Metal Parts – SS316, SS304
• Waste Water Treatment
• Water System
• Submersible Pumps
• Sewage pumps
